Description

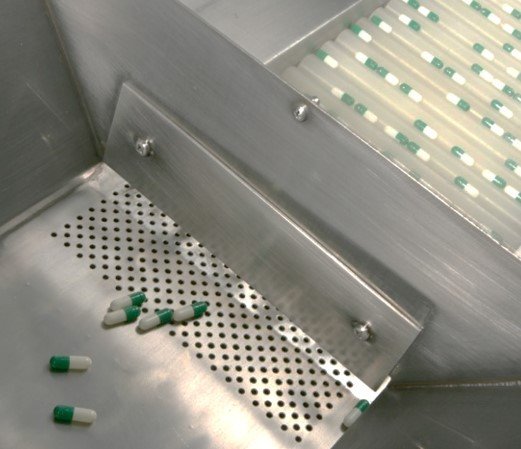

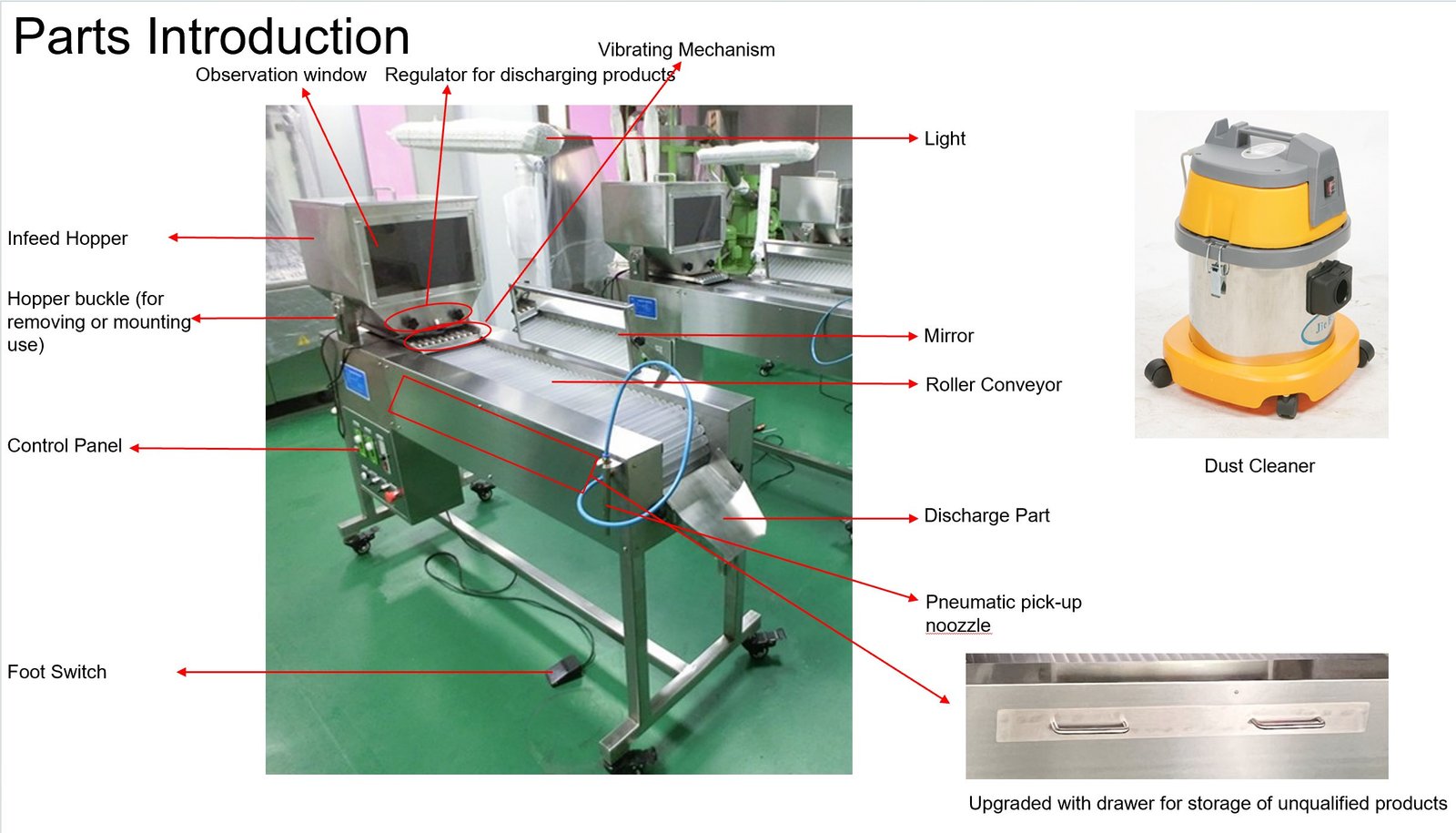

TM-220 Capsule Tablet Inspection Machine is specially designed for inspecting capsules and tablets (pills). The products are filled into the vibrating hopper, and then fed to discharge conveyor. Along with the movements of the conveyor, the capsules or tablets rotate, which is convenient for worker to inspect the products and find out the unqualified ones. This machine is designed in accordance with GMP standard, and is an ideal machine for complete capsule/tablet check.
Features
Technical Parameters
Model TM-220
Capsule or tablets #00~#5, diameter 20mm
Compressed air Needed for picking up the unqualified products
Power 0.31KW
Power Source 220V,50HZ,Single phase (can be customized)
Total Weight 230kg
Dimension 1640×664×1422
