Description

This automatic wafter packing line is applicable for wafer and some other similar cutting products with large capacity, but in good order and regular shape. It solves the traditional problems like close distances between products, difficult direction turning, uneasy to arrange in lines, etc to achieve single or multiple packing form.

Product Detail

This automatic packaging system is designed for products with a tray or box, and this packing line can automatically load the tray and pack without any manual operation.

One worker can operate two lines, which helps to save labor costs for customers.

This feed-in and packing line are equipped with deoxidizer or deoxidizing agent pad feeder, tray sucking down unit, tray automatic loading unit and packaging machine.

The packing speed of the tray loading and packaging line is 100-120 bags per minute.

1. Product Introduction of Automatic Horizontal Wrapping Equipment for Swiss Roll

This wafer packaging system is a multi-function system, which can pack single wafer and multi-wafer. We designed the whole packing system according to your layout and inquiry. The maximum speed can up to 250 bags/ minute. The speed of the family pack depends on the size.

2. Main Function of Food Packing Machine for Wafer

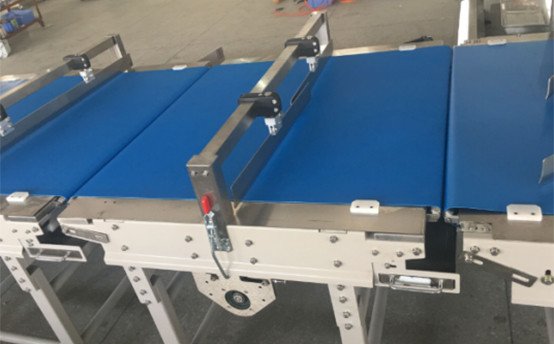

The wafer packing line consists of a distance controller, reversing conveyor, auto sorting unit, and packing machine. This system will help wafer auto aligning, distanced, distributing, and delivering to the sorting unit and finish packing in order to keep a continuous and orderly production with lower waste and beautiful package. Alcohol spray and air charging are optional.

Single line packing speed can reach 80-220 bags/min.

The whole packaging system adopts 220V, 50HZ, single phase. Total Power is 26KW

The food packing system can use different packing models according to customer product inquiries.

3. Advantage of Automatic Food Packing System for Wafer Biscuit

The horizontal packing line equipped with an auto aligning device and protective cover. The auto-correcting device is optional.

Simplified structure, easy operation, convenient cleaning, and maintenance. Easy adjustment for different products or parameter settings.

The Control system uses high-quality electronic, intelligent PLC, touch screen, and good HMI, operating more simply and conveniently.

The flow packing line equipped with several different speed belt to arrange breads or cakes to guarantee high speed stably and locate accurately.

The automatic food packaging machine and system use stainless steel and Nylon baffle, easy for operation and cleaning.

PU belt can be discharged without tools in 1 minute and equipped with a hopper to get product waste, which easy for cleaning and maintenance.

The food machinery structure is very simple, easy operation, convenient for cleaning and maintenance. Easy adjustment for different products or parameter settings.

The Control system of the plastic film packaging equipment uses high-quality electronic, intelligent PLC, touch screen, and good HMI, operating more simply and conveniently.

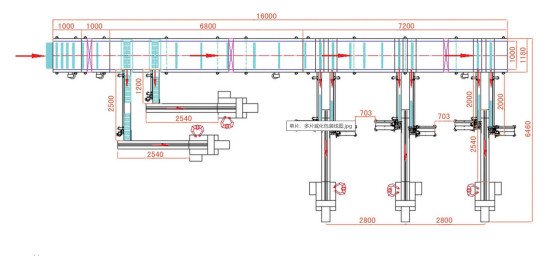

We will add a 90-degree turning conveyor or 180-degree turning conveyor to the packaging system according to customers’ factory layout or space.

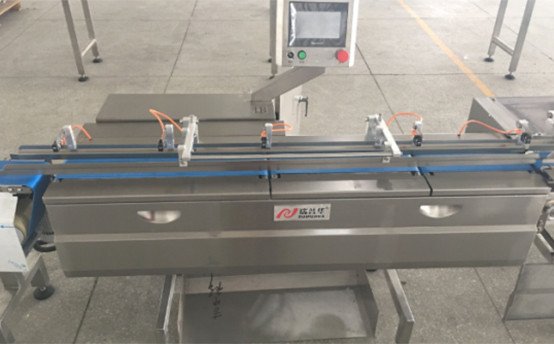

Equipped with meter detector and weight checker, which can automatically connect with the flow packaging system.

Wafer automatic food packaging machine equipped with an auto aligning device and the automatic correcting device for the belt is optional.

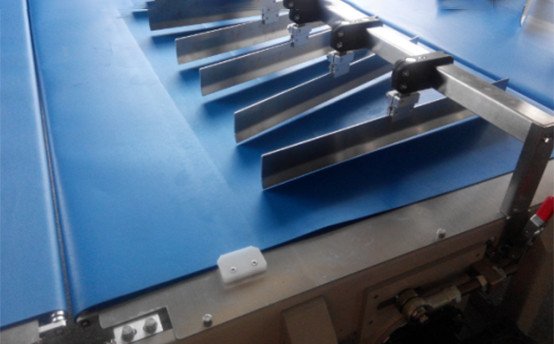

The packing line can align wafers (products) and deliver to the sorting unit orderly to guarantee high speed stably and locate them accurately.

PU belt of packing machine can be discharged without tools and equipped with hopper to get product waste, which easy for cleaning and maintenance.

Simplified structure, easy operation, convenient cleaning and maintenance. Easy adjustment for different products or parameter settings.

The wafer line control system uses high-quality electronic, intelligent PLC, touch screen, and good HMI, operating more simply and conveniently.

The PU belt of the wafer packaging line can use sticky proof in white color optionally.

4. Application of Automatic Packaging Machinery

Applicable for packing extruded food and other regular product, which made by cutting machines. Connected with former production line by automatic feeder or manual feeder.
