This machine is specially designed for coffee filtering cup production, including filter paper cutting, cup feeding, fully automatic assembly of filter paper and cup, filter paper wrinkling, and ultrasonic welding of filter paper and filter cup. The equipment is designed with a turntable structure, with high positioning accuracy and fast speed. The filter cups are manually loaded into the feeding magazine, and the robotic arm automatically grabs and feeds the material (1 out of 3); The filter paper adopts a single piece feeding method after die cutting; The filter paper automatic feeding robotic arm automatically needle feeds the suction cup, passes through the secondary gauge position, and then through the needle suction cup, the material is sucked again and placed in the turntable fixture and filter cup assembly. The filter paper automatically folds, and ultrasonic welding is carried out sequentially between the filter paper and the filter cup.

The rotary working station is fully enclosed for easy cleaning;

Improved internal structure of the module turntable, the upper and lower modules are fixed with double axis positioning, ensuring the accuracy and service life of the equipment; Novel capsule dispensing mechanism, with each dispensing plate dispensing two rows of capsules simultaneously;

The main transmission bearing seat adopts a detachable structure, which is convenient for installation and maintenance;

The transmission cam of each workstation is made of high-quality materials for internal cam transmission, which is wear-resistant, runs smoothly, and has a long service life; High precision transmission system, stable and reliable;

The electronic control system is driven by VFD with stepless speed regulation, accurate operation, safe and reliable.

The filling mechanism is equipped with a pneumatic vacuum feeder.

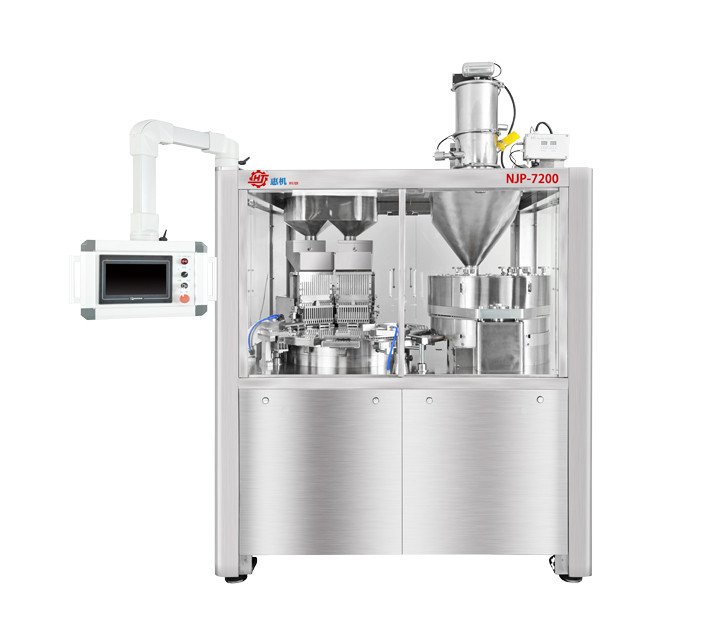

Model NJP-7200

Production Capacity 7200Piece/Pieces per min

Hole Number 56

Index table 12-Partition, Seal Type

Row 4 Double

Dividing Device Groove Wheel

Capsule Size 00#,0#,1#,2#,3#,4#,5#

Capsule Size for Pelle Divice 0#,1#,2#,3#,4#

Total Powwer 9.47Kw

Weight 3300kg

Dimension(L*W*H) 1725x1420x2000mm
